Masa GmbH

Masa GmbH is a German company that has been designing, building and supplying machinery for the building materials industry for more than 110 years. In these 110 years, Masa has grown to become a fixed value in the concrete industry by building high-quality machines for the production of curbstones, paving stones, concrete blocks and concrete tiles.

Masa provides planning, design, manufacture, assembly, commissioning, training, maintenance and continuous support during production for all its customers to always guarantee the best quality.


CONCRETE BLOCK PRODUCTION

In the dosing and mixing installations, the various raw materials are processed into concrete, after which the concrete is applied in the form and pressed into concrete blocks by means of vibrations.

A special surface character can be created with the help of different surface treatment devices.

You can find more information about the production of concrete blocks in the brochure at the bottom of this page.

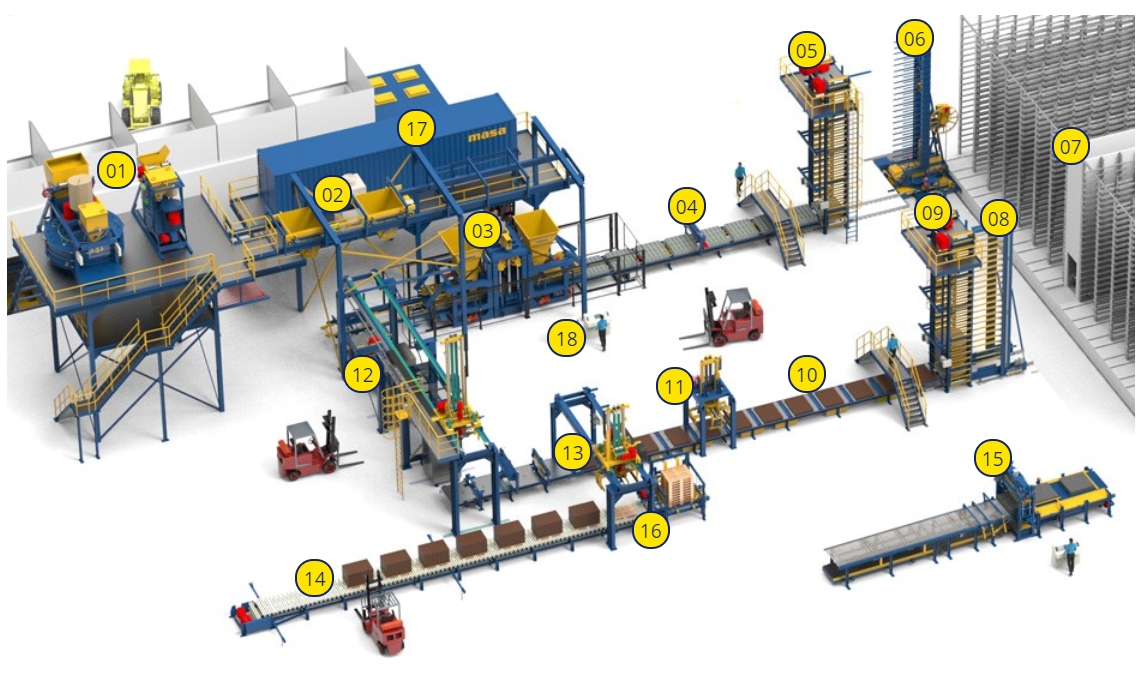

1. Aggregate Dosing and Concrete Mixing Plant
2. Concrete transport systems
3. Concrete Block Making Machine
4. Wet side transport
5. Elevator
6. Finger car
7. Curing chamber and ventilation
8. Intermediate finger car
9. Lowerator
10. Return transport
11. Centering device
12. Production pallets - cross transport and buffer
13. Cubing
14. Cube conveyor
15. Surface treatment
16. Remodeling
17. Powertainer
18. Control system and safety devices

CURBSTONE PRODUCTION

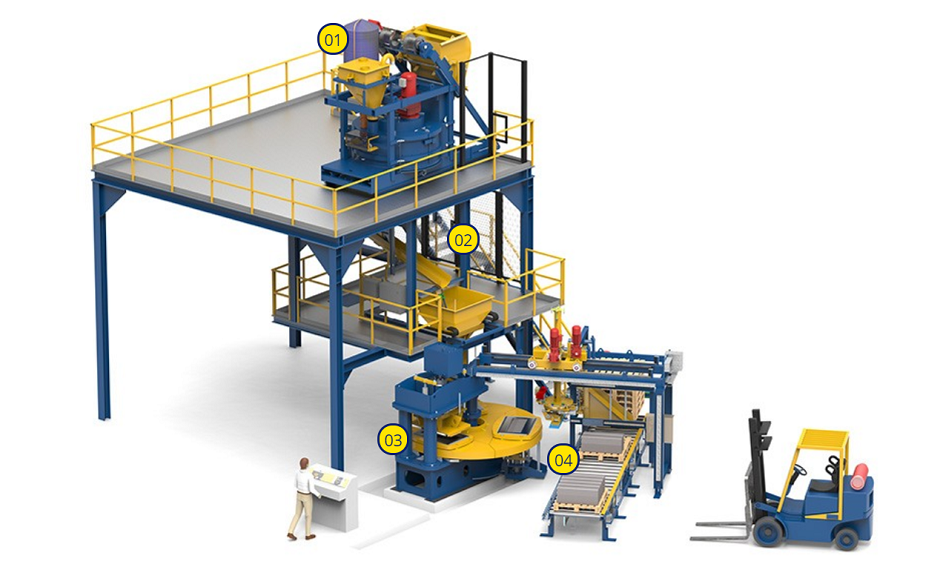

The various raw materials are processed into concrete in the dosing and mixing plant (1).

Subsequently, the concrete is transported (2) to the curbstone press (3) where the concrete is applied in the form and is formed into a curbstone by means of pressure.

Finally, the fresh curbstones are automatically placed on pallets with the aid of a vacuum device and transported to the delivery position via a conveyor belt (4).


CONCRETE SLAB PRODUCTION

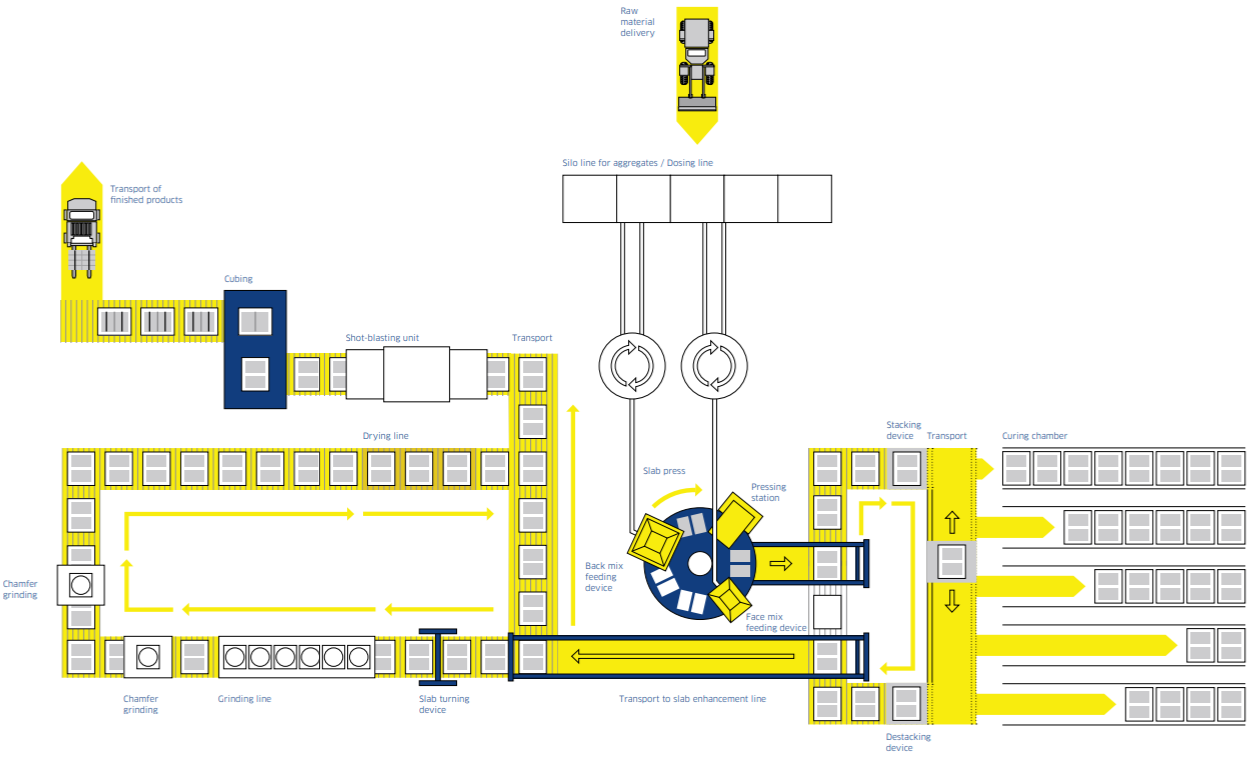

The UNI 2000 slab press from Masa is the heart of every factory for the production of concrete slabs.

You can find more information about the production of concrete slabs in the brochure at the bottom of this page.


MASA Concrete Block Production Plant

MASA Concrete Block Production

MASA Concrete Block Production

MASA brochure

Products General Brochure

MASA brochure

Concrete Block Production

MASA brochure

Concrete Slab Production

MASA brochure

MASA Service & Support Brochure






For more information about Masa's products, please contact us via the contact form below or via post@bematec.com.
